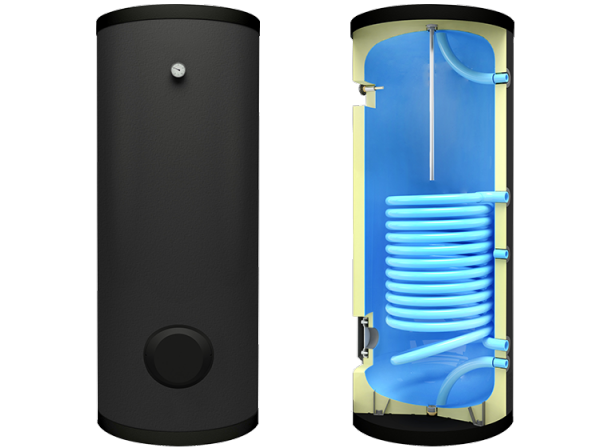

Single Coil Cylinders
Single Coil Cylinders can be used with Solar Thermal installations.
ENAMEL/GLASS LINED CALORIFIER
Technical Data
Volume: 160L – 5000L
Capacity Range: 12.9 kW – 186.8 kW
Maximum Operating Temperature: 95 *C
Body Operating Pressure: 10 Bar
Inner Surface Coating: Tank inner surface is Enamel/glass-lined in accordance with DIN 4753-3 standard
Insulation: Insulation is in accordance with EN 15332 Energy Efficiency Standard
160L – 5000L: 18 kg/m’ soft PU
160L – 5000L: 26 kg/m’ flame retardant soft PU (Optional)
External Cover Coating:
160L – 5000L: Artificial Leather / IXPE / ABS
Thermometer: 0°C -120°C
Inspection and cleaning Flange: Inspection and cleaning flange is available in all series
Electrical Heater: Electric heater can be installed (Optional)
Cathodic Protection Element: Electronic anode in accordance with DIN 4753-3 standard

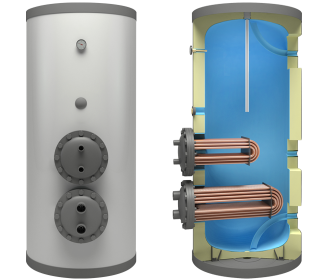

Twin Coil Cylinders
Having a twin coil cylinderis like having a combined solar.
SS316L CALORIFIER
Technical Data
Volume: 160L – 5000L
Capacity Range: 12.9 kW – 186.8 kW
Maximum Operating Temperature: 95 *C
Body Operating Pressure: 10 Bar
Body Material: AISI 316 stainless steel
Insulation Type: Polyester Fiber
160L – 5000L: 18 kg/m’ soft PU
160L – 5000L: 26 kg/m’ flame retardant soft PU (Optional)
External Cover Coating:
160L – 5000L: PVC
Thermometer: 0°C -120°C
Inspection and cleaning Flange: Inspection and cleaning flange is available in all series
Electrical Heater: Electric heater can be installed (Optional)
Cathodic Protection Element: Electronic anode in accordance with DIN 4753-3 standard.
Single to Three Coil Cylinder
Having a single/three coil cylinder is like having a combined solar .
PLASTIC CALORIFIER
Technical Data
Volume: 300L – 5000L
Capacity Range (DHW) : 480 L/H – 8000 L/H
Maximum Operating Temperature: 75 *C
DHW Operating Pressure: 16 Bar
DHW Material: AISI 316 stainless steel
Insulation Type: Polyurethane
50 – 100mm thickness
Electrical Heater: Electric heater can be installed (Optional)
Cathodic Protection Element: Not Required ( suitable for Drinking Water )
